Home > Professional Curtain Wall Window Manufacturer > Door&Window > Window Series // Zenith 150 Series Motorized Vertical Lift Window
  • Window Series // Zenith 150 Series Motorized Vertical Lift Window | Juheintl
  • Window Series // Zenith 150 Series Motorized Vertical Lift Window | Juheintl
  • Window Series // Zenith 150 Series Motorized Vertical Lift Window | Juheintl
  • Window Series // Zenith 150 Series Motorized Vertical Lift Window | Juheintl
  • Window Series // Zenith 150 Series Motorized Vertical Lift Window | Juheintl
  • Window Series // Zenith 150 Series Motorized Vertical Lift Window | Juheintl

Window Series // Zenith 150 Series Motorized Vertical Lift Window

Air Tightness
Level 5
Water Tightness
Level 5
Wind Pressure Resistance
Level 10
Thermal Insulation
1.5 W/(㎡·K)
Sound Insulation
42db
GET A QUOTE
Add to Quote List Parcourir la liste
  • Window Series // Zenith 150 Series Motorized Vertical Lift Window | Juheintl
  • Window Series // Zenith 150 Series Motorized Vertical Lift Window | Juheintl
  • Window Series // Zenith 150 Series Motorized Vertical Lift Window | Juheintl

  • Description

  • Key Features

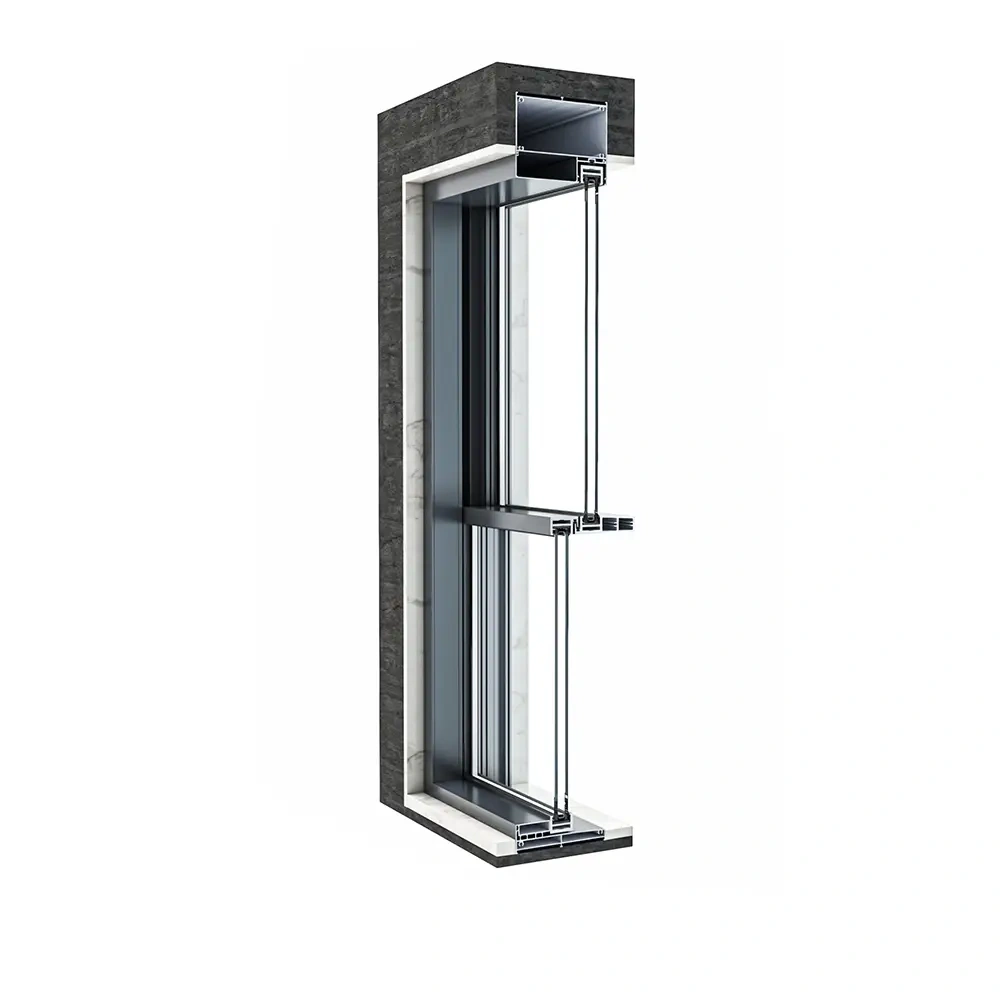

  • Typical Node Diagram

Product Advantages

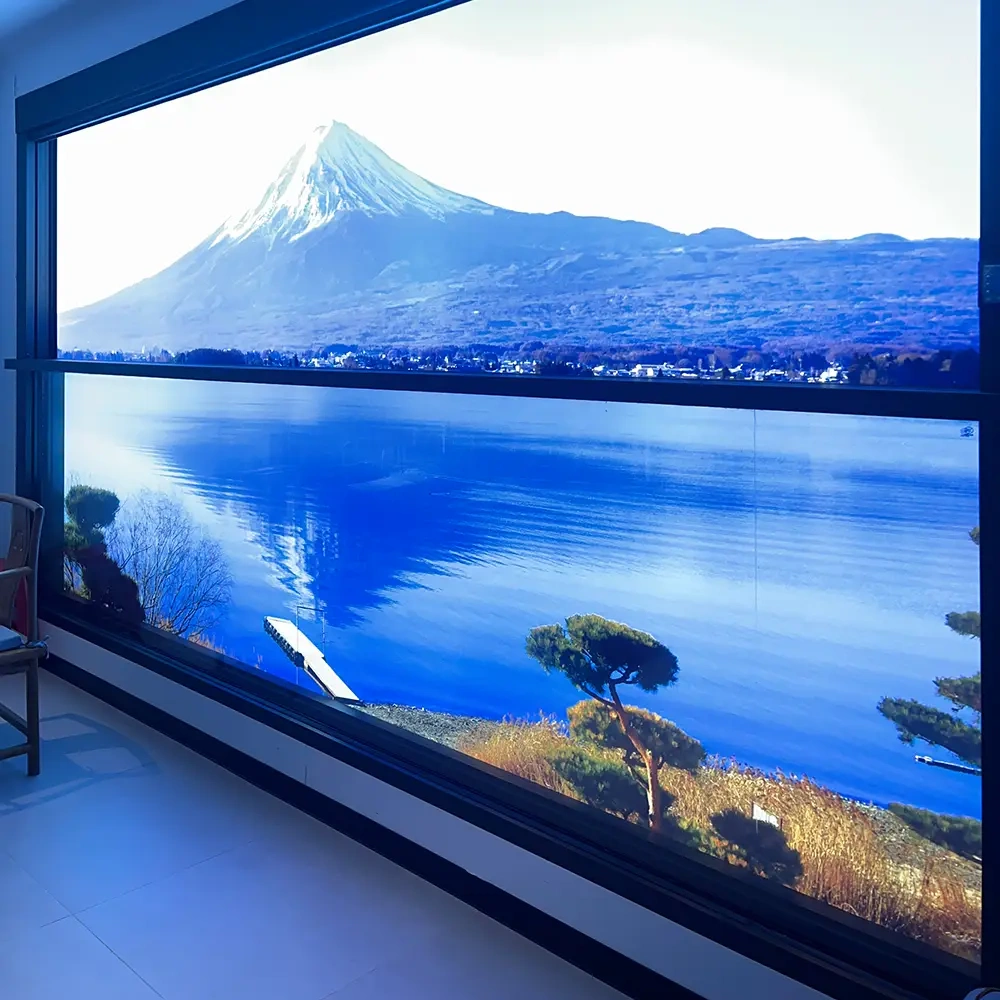

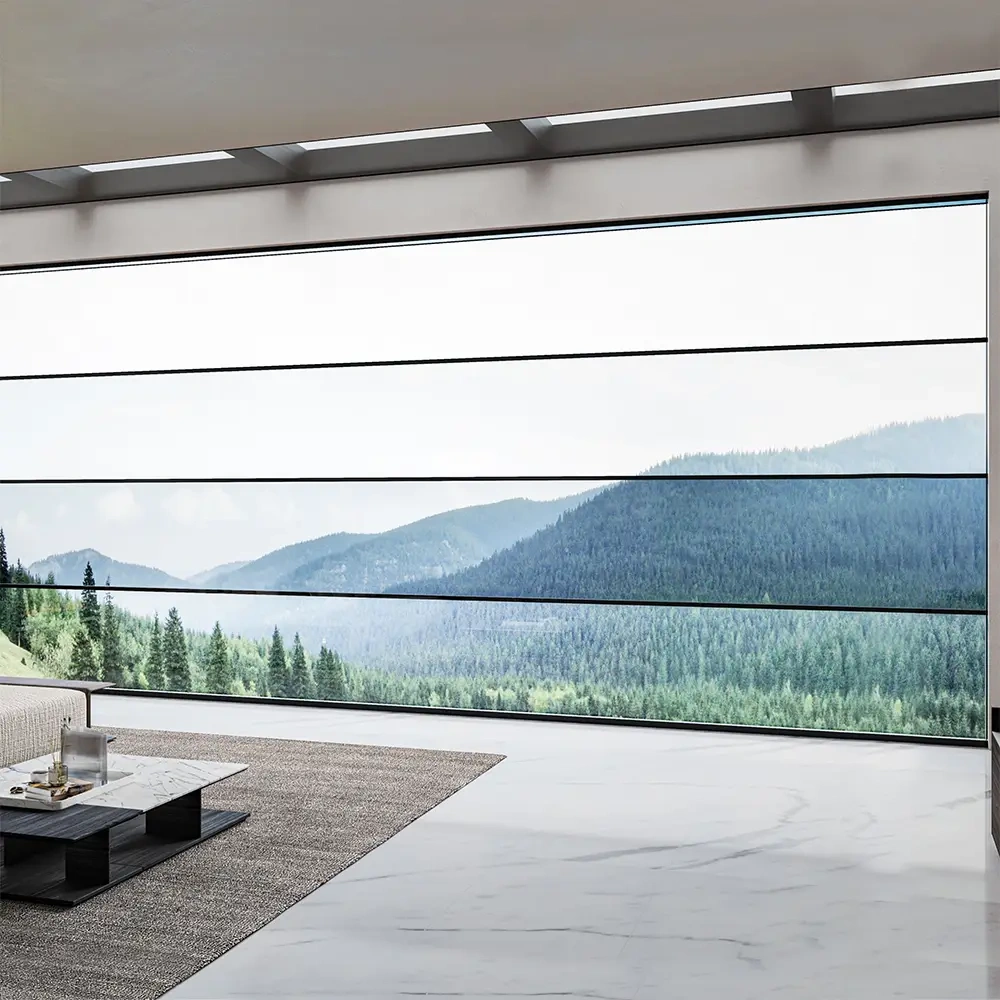

  1. Minimalist frame design paired with oversized glass delivers a 180° panoramic viewing experience;
  2. Two-stage lifting mechanism (fixed lower sash + liftable upper sash) achieves a 50% maximum opening area, combining panoramic views and ventilation in one solution;
  3. Maximum dimensions: 4800mm (width) × 2600mm (height);
  4. Equipped with rain sensor auto-close, remote control operation, and electric opening/closing for effortless, worry-free use;
  5. Built-in infrared anti-pinch function ensures enhanced safety and peace of mind.



Basic Product Parameters Specifications
Insulation Strip 12mm
Profile Thickness 2.0-5.0mm
Frame Visible Width Side Frame: 120mm; Top Frame: 205mm
Mullion Visible Width Mullion/Transom: 20mm
Sash Visible Width 50mm
Glass Specifications (Frame & Sash) 8mm Clear Glass + 16A Air Spacer + 8mm Clear Glass
Hardware Brand --
Insect Screen Scheme & Mesh Type Electric Windproof Mesh
Available Colors Light-Sensitive Matte Black, Hepburn Black-Gray, Starry Sky Gray, Starbucks Coffee
Application Scenarios Large Apartment Enclosed Balconies
Notes --

Unitized Hidden-Frame High-End Curtain Wall Series

The maximum single unit height reaches 6800mm, with a unit panel width up to 1800mm. The overall facade can be designed in unlimited continuous width.All products adopt factory standardized production and prefabricated assembly construction to ensure stable and reliable quality.Both electric and manual opening modes are available for selection.
About US
Juheintl curtain wall, window and door system

ES150 Electric Lifting Window – FAQ

How much opening area can the ES150 achieve for ventilation?

The two‑stage lifting mechanism allows the upper sash to open up to 50% of the total window area, delivering excellent natural airflow while maintaining a sleek, panoramic look.

Is the electric lifting window safe for homes with children or pets?

Yes. The ES150 is equipped with a built‑in infrared anti‑pinch sensor that automatically stops and reverses movement if an obstacle is detected. It also features a rain sensor for auto‑close, adding extra peace of mind.

Can the ES150 be integrated with my smart home system?

Absolutely. The window supports smart home connectivity and can be paired with wind/rain sensors, allowing you to control it via remote, touch, or voice (when integrated with compatible hubs).

What is the maximum size and weight for a single ES150 unit?

The maximum dimensions are 4800mm (width) × 2600mm (height), with a total movable sash weight of up to 350 kg. This makes it suitable for large balcony and living room installations.
